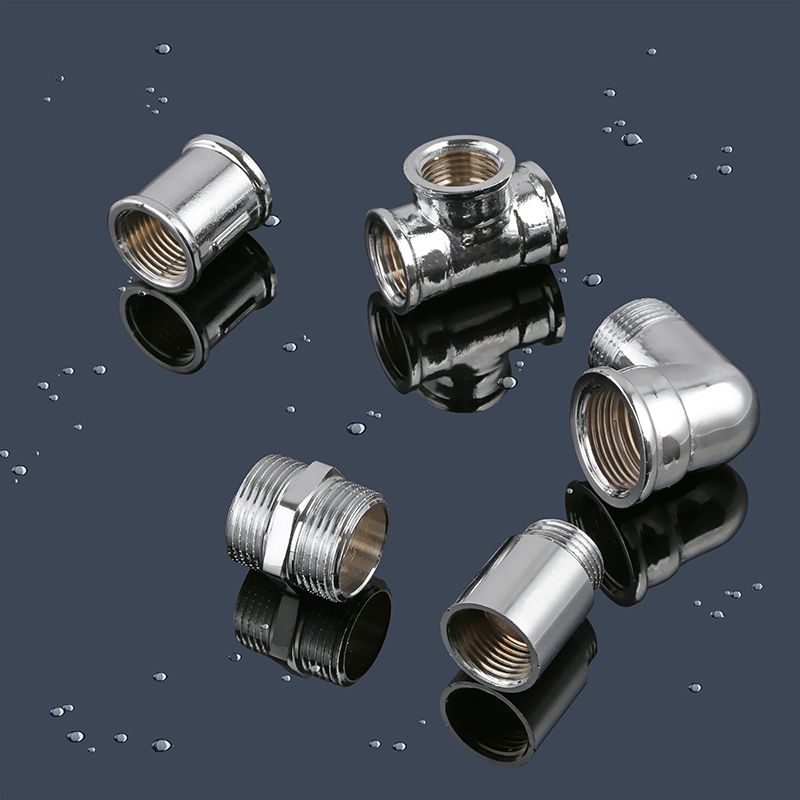

HS200 - Резьбовые фитинги из хромированной латуни
Латунные резьбовые фитинги Honson HS200 хорошо подходят для использования в широком спектре применений, таких как отопление, дождевая вода, водопроводные системы и санитарно-гигиенические системы. Они долговечны и просты в установке.
Широкий ассортимент резьбовых фитингов размером от 1/4 ” до 4”, а также различная обработка поверхности дают монтажникам возможность выбрать фитинги, подходящие для конкретного применения.
Особенности
-
Подходит для использования в водопроводных системах и отопительных установках
- Размер: от 1/4 ” до 1”
- Стандарт EN 1254-4
- Сертификат CE
- Варианты материалов: CW617N-4MS, MS58
- Варианты обработки поверхности: хромированная
-
Прямой соединитель
- Отвод
- Тройник
Прямой соединитель с резьбой из хромированной латуни

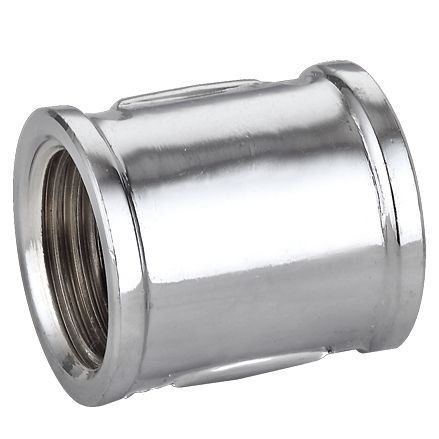

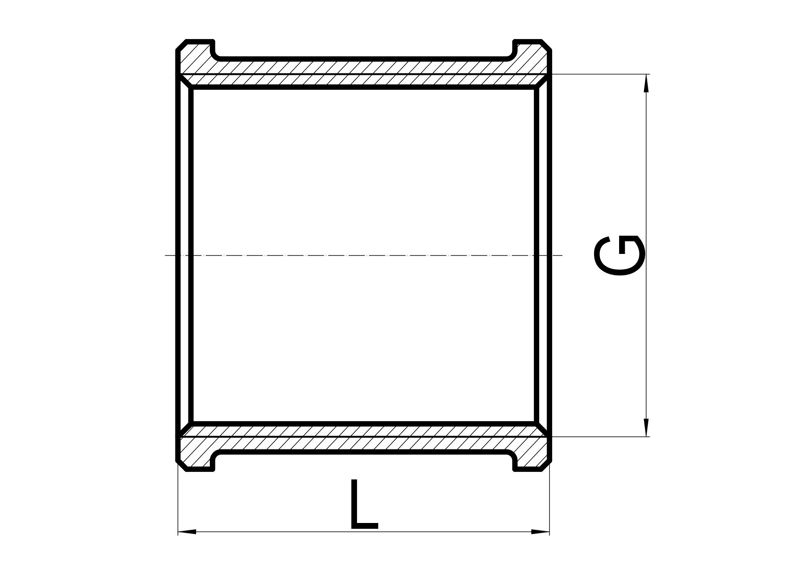

Соединитель с одинаковой прямой внутренней резьбой, HS200-001
| РАЗМЕР | Резьба | Длина |
| 1/4'' | 1/4'' | 22 |
| 3/8'' | 3/8" | 25 |
| 1/2'' | 1/2" | 30 |
| 3/4'' | 3/4" | 34 |
| 1'' | 1" | 36 |
| 1 1/4'' | 1 1/4" | 43 |
| 1 1/2'' | 1 1/2" | 53 |
| 2'' | 2'' | 65 |
| 2 1/2'' | 2 1/2" | 68 |
| 3'' | 3" | 70 |
| 4'' | 4" | 80 |

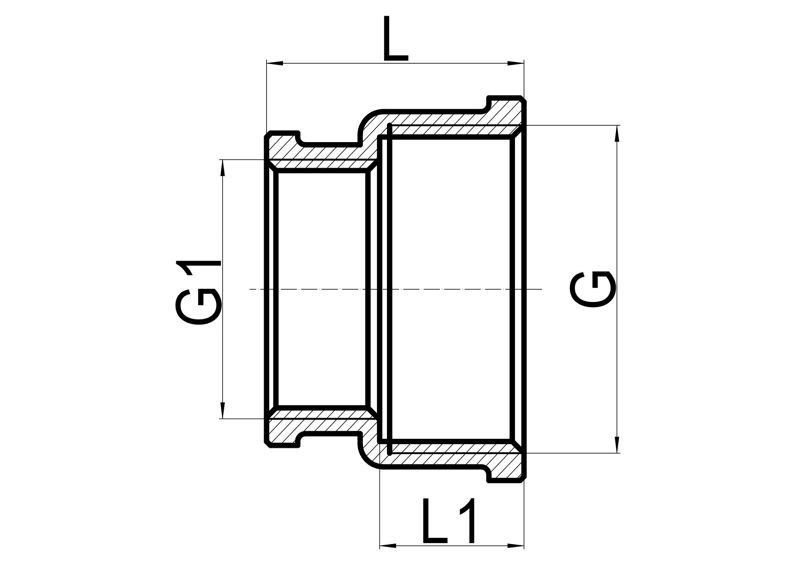

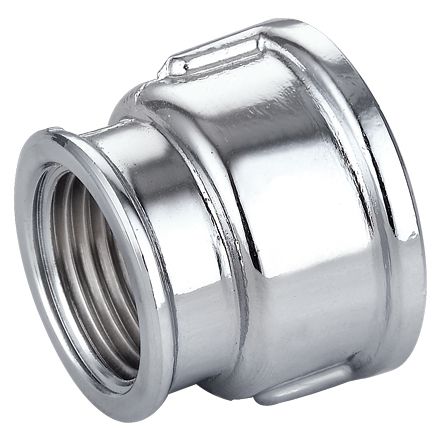

Муфта для уменьшения внутренней резьбы, HS200-002
| РАЗМЕР | Резьба | Резьба1 | Длина | Длина1 |
| 1/2''×3/8'' | 1/2" | 3/8" | 21.5 | 13 |
| 3/4''×1/2'' | 3/4" | 1/2" | 26 | 14.5 |
| 1'' ×1/2'' | 1" | 1/2" | 28 | 16 |
| 1''×3/4'' | 1" | 3/4" | 29 | 16 |
| 1 1/4''×1/2'' | 1 1/4" | 1/2" | 30.5 | 18.5 |
| 1 1/4''×3/4'' | 1 1/4" | 3/4" | 31.5 | 18.5 |
| 1 1/4''×1'' | 1 1/4" | 1" | 33 | 18.5 |
| 1 1/2''×1'' | 1 1/2" | 1" | 33 | 19.5 |
| 1 1/2'' ×1 1/4'' | 1 1/2" | 1 1/4" | 35 | 19.5 |
| 2''×1'' | 2" | 1" | 37 | 23 |
| 2'' ×1 1/4'' | 2" | 1 1/4" | 39 | 23 |
| 2'' ×1 1/2'' | 2" | 1 1/2" | 40 | 23 |

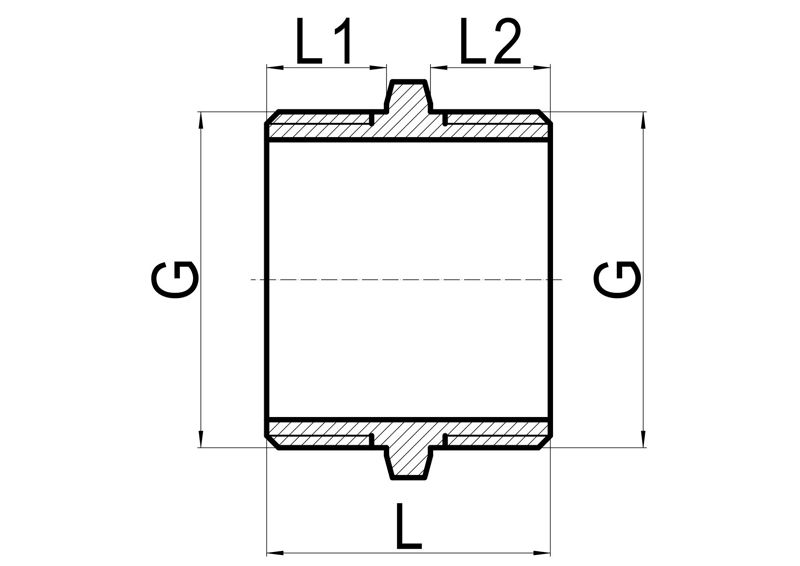

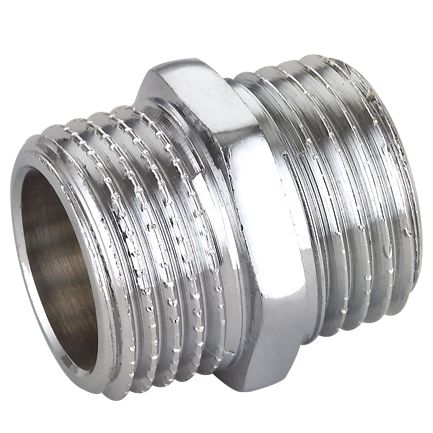

Ниппель с одинаковой наружной резьбой, HS200-003
| РАЗМЕР | Резьба | Длина | Длина1 |
| 1/8'' | 1/8'' | 19.5 | 8 |
| 1/4'' | 1/4'' | 21 | 8.5 |
| 3/8'' | 3/8" | 22.5 | 9 |
| 1/2'' | 1/2" | 25.5 | 10.5 |
| 3/4'' | 3/4" | 29 | 12 |
| 1'' | 1" | 31.5 | 13 |
| 1 1/4'' | 1 1/4" | 35.5 | 15 |
| 1 1/2'' | 1 1/2" | 39 | 16.5 |
| 2'' | 2" | 45 | 19 |
| 2 1/2'' | 2 1/2" | 58 | 25 |
| 3'' | 3" | 63 | 27 |
| 4'' | 4" | 81 | 35 |

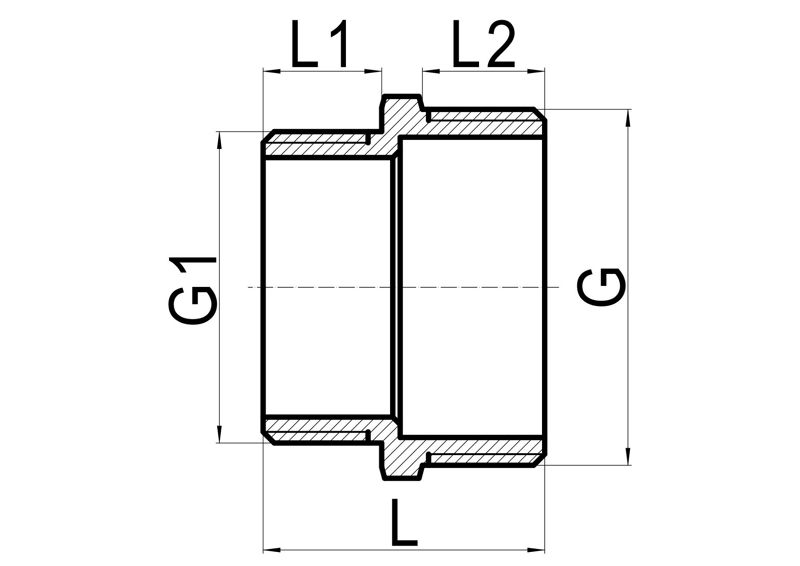

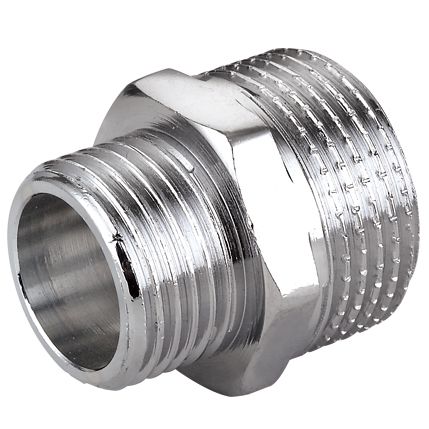

Ниппель для уменьшения наружной резьбы, HS200-004
| РАЗМЕР | Резьба | Резьба1 | Длина | Длина1 | Длина2 |
| 1/4''×1/8'' | 1/4" | 1/8" | 20.5 | 8.5 | 8 |
| 3/8''×1/8'' | 3/8" | 1/8" | 21 | 7.5 | 9 |
| 3/8''×1/4'' | 3/8" | 1/4" | 21 | 7.5 | 9 |
| 1/2''×1/8'' | 1/2" | 1/8" | 23 | 7.5 | 11 |
| 1/2''×1/4'' | 1/2" | 1/4" | 23 | 7.5 | 11 |
| 1/2''×3/8'' | 1/2" | 3/8" | 24.5 | 9 | 11 |
| 3/4''×3/8'' | 3/4" | 3/8" | 26.5 | 9 | 12.5 |
| 3/4''×1/2'' | 3/4" | 1/2" | 29 | 11.5 | 12.5 |
| 1''×1/2'' | 1" | 1/2" | 30 | 11.5 | 14 |
| 1''×3/4'' | 1" | 3/4" | 31 | 12 | 14 |
| 1 1/4''×1/2'' | 1.1/4" | 1/2" | 33 | 11.5 | 16 |
| 1 1/4''×3/4'' | 1.1/4" | 3/4" | 34.5 | 13 | 16 |
| 1 1/4''×1'' | 1.1/4" | 1" | 35 | 13.5 | 16 |
| 1 1/2''×1/2'' | 1.1/2" | 1/2" | 33.5 | 11.5 | 16.5 |
| 1 1/2''×3/4'' | 1.1/2" | 3/4" | 35 | 13 | 16.5 |
| 1 1/2''×1'' | 1.1/2" | 1" | 35 | 13 | 16.5 |
| 1 1/2''×1 1/4'' | 1.1/2" | 1.1/4" | 38 | 16 | 16.5 |
| 2''×1/2'' | 2" | 1/2" | 37.5 | 11.5 | 20 |
| 2''×3/4'' | 2" | 3/4" | 39 | 13 | 20 |
| 2''×1'' | 2" | 1" | 40 | 14 | 20 |
| 2''×1 1/4'' | 2" | 1.1/4" | 42 | 16 | 20 |
| 2''×1 1/2'' | 2" | 1.1/2" | 42.5 | 16.5 | 20 |
| 2 1/2''×2'' | 2.1/2" | 2" | 54 | 20 | 25 |
| 3''×2'' | 3" | 2" | 57 | 20 | 27 |
| 3''×2 1/2'' | 3" | 2 1/2" | 62 | 27 | 25 |
| 4''×2 1/2'' | 4" | 2 1/2" | 71 | 35 | 25 |
| 4''×3'' | 4" | 3" | 73 | 35 | 27 |

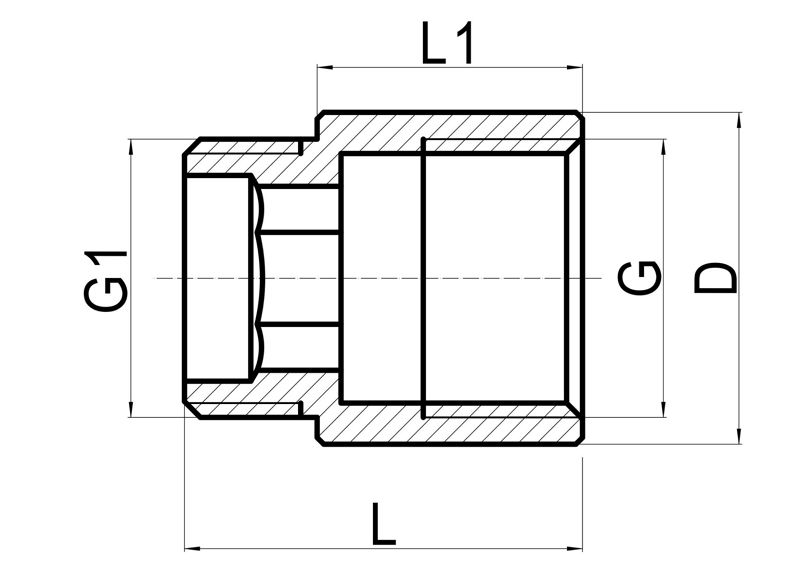

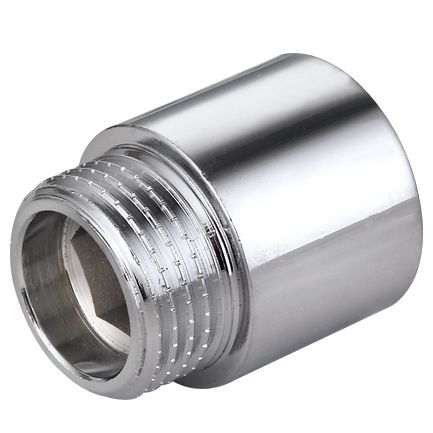

Удлинитель с наружной резьбой к внутренней, HS200-009
| РАЗМЕР | Диаметр | Резьба | Резьба1 | Длина | Длина1 |
| 3/8"×15 | 20 | 3/8" | 3/8" | 24 | 15 |
| 3/8"×30 | 20 | 3/8" | 3/8" | 39 | 30 |
| 3/8"×50 | 20 | 3/8" | 3/8" | 59 | 50 |
| 3/8"×100 | 20 | 3/8" | 3/8" | 109 | 100 |
| 1/2"×10 | 25 | 1/2" | 1/2" | 20 | 10 |
| 1/2"×15 | 25 | 1/2" | 1/2" | 25 | 15 |
| 1/2"×20 | 25 | 1/2" | 1/2" | 30 | 20 |
| 1/2"×25 | 25 | 1/2" | 1/2" | 35 | 25 |
| 1/2"×30 | 25 | 1/2" | 1/2" | 40 | 30 |
| 1/2"×40 | 25 | 1/2" | 1/2" | 50 | 40 |
| 1/2"×50 | 25 | 1/2" | 1/2" | 60 | 50 |
| 1/2"×60 | 25 | 1/2" | 1/2" | 70 | 60 |
| 1/2"×70 | 25 | 1/2" | 1/2" | 80 | 70 |
| 1/2"×80 | 25 | 1/2" | 1/2" | 90 | 80 |
| 1/2"×90 | 25 | 1/2" | 1/2" | 100 | 90 |
| 1/2"×100 | 25 | 1/2" | 1/2" | 110 | 100 |
| 3/4"×10 | 30.5 | 3/4" | 3/4" | 22 | 10 |
| 3/4"×15 | 30.5 | 3/4" | 3/4" | 27 | 15 |
| 3/4"×20 | 30.5 | 3/4" | 3/4" | 32 | 20 |
| 3/4"×25 | 30.5 | 3/4" | 3/4" | 37 | 25 |
| 3/4"×30 | 30.5 | 3/4" | 3/4" | 42 | 30 |
| 3/4"×40 | 30.5 | 3/4" | 3/4" | 52 | 40 |
| 3/4"×50 | 30.5 | 3/4" | 3/4" | 62 | 50 |
| 3/4"×60 | 30.5 | 3/4" | 3/4" | 72 | 60 |
| 3/4"×70 | 30.5 | 3/4" | 3/4" | 82 | 70 |
| 3/4"×80 | 30.5 | 3/4" | 3/4" | 92 | 80 |
| 3/4"×90 | 30.5 | 3/4" | 3/4" | 102 | 90 |
| 3/4"×100 | 30.5 | 3/4" | 3/4" | 112 | 100 |
| 1"×10 | 37.5 | 1" | 1" | 23 | 10 |
| 1"×15 | 37.5 | 1" | 1" | 28 | 15 |
| 1"×20 | 37.5 | 1" | 1" | 33 | 20 |
| 1"×25 | 37.5 | 1" | 1" | 38 | 25 |
| 1"×30 | 37.5 | 1" | 1" | 43 | 30 |
| 1"×40 | 37.5 | 1" | 1" | 53 | 40 |
| 1"×50 | 37.5 | 1" | 1" | 63 | 50 |

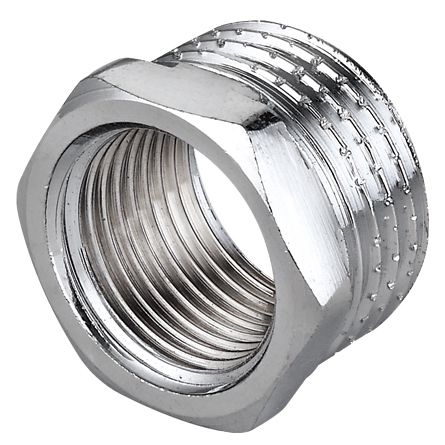

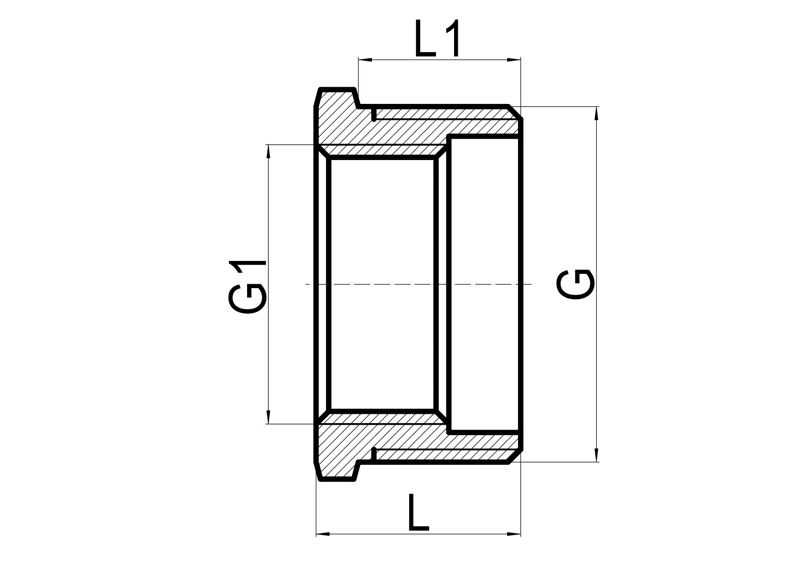

Резьбовая втулка / шестигранная втулка, HS200-010
| РАЗМЕР | Резьба | Резьба1 | Длина | Длина1 |
| 1/4''×1/8'' | 1/4" | 1/8" | 10 | 8 |
| 3/8''×1/8'' | 3/8" | 1/8" | 13 | 9 |
| 3/8''×1/4'' | 3/8" | 1/4" | 13 | 9 |
| 1/2''×1/8'' | 1/2" | 1/8" | 14.5 | 10.5 |
| 1/2''×1/4'' | 1/2" | 1/4" | 14.5 | 10.5 |
| 1/2''×3/8'' | 1/2" | 3/8" | 14.5 | 10.5 |
| 3/4''×1/8'' | 3/4" | 1/8" | 16 | 11.5 |
| 3/4''×1/4'' | 3/4" | 1/4" | 16 | 11.5 |
| 3/4''×3/8'' | 3/4" | 3/8" | 16 | 11.5 |
| 3/4''×1/2'' | 3/4" | 1/2" | 16 | 11.5 |
| 3/4''×5/8'' | 3/4" | 5/8" | 16 | 11.5 |
| 1''×3/8'' | 1" | 3/8" | 17.5 | 12.5 |
| 1''×1/2'' | 1" | 1/2" | 17.5 | 12.5 |
| 1''×3/4'' | 1" | 3/4" | 17.5 | 12.5 |
| 1 1/4''×1/2'' | 1.1/4" | 1/2" | 19.5 | 14.5 |
| 1 1/4''×3/4'' | 1.1/4" | 3/4" | 19.5 | 14.5 |
| 1 1/4''×1'' | 1.1/4" | 1" | 19.5 | 14.5 |
| 1 1/2''×1/2'' | 1.1/2" | 1/2" | 20.5 | 15 |
| 1 1/2''×3/4'' | 1.1/2" | 3/4" | 20.5 | 15 |
| 1 1/2''×1'' | 1.1/2" | 1" | 20.5 | 15 |
| 1 1/2''×1 1/4'' | 1.1/2" | 1.1/4" | 20.5 | 15 |
| 2''×1/2'' | 2" | 1/2" | 25.5 | 19 |
| 2''×3/4'' | 2" | 3/4" | 25.5 | 19 |
| 2''×1'' | 2" | 1" | 25.5 | 19 |
| 2''×1 1/4'' | 2" | 1.1/4" | 25.5 | 19 |
| 2''×1 1/2'' | 2" | 1.1/2" | 25.5 | 19 |
| 2 1/2''×1 1/4'' | 2.1/2" | 1.1/4" | 28 | 21 |
| 2 1/2''×1 1/2'' | 2.1/2" | 1.1/2" | 28 | 21 |
| 2 1/2''×2'' | 2.1/2" | 2" | 28 | 21 |
| 3''×1 1/2'' | 3" | 1.1/2" | 33 | 25 |
| 3''×2'' | 3" | 2" | 33 | 25 |
| 3''×2 1/2'' | 3" | 2.1/2" | 33 | 25 |
| 4''×1 1/2'' | 4" | 1.1/2" | 44 | 34 |
| 4''×2'' | 4" | 2" | 44 | 34 |
| 4''×2 1/2'' | 4" | 2.1/2" | 44 | 34 |
| 4''×3'' | 4" | 3" | 44 | 34 |

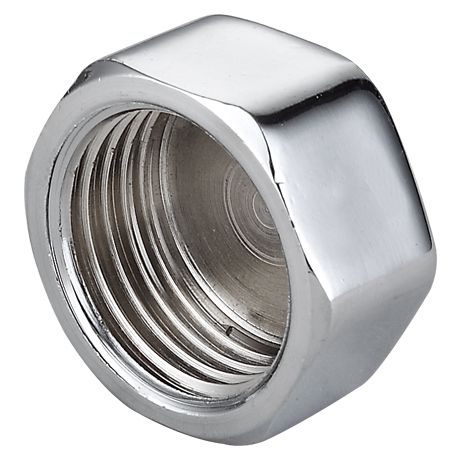

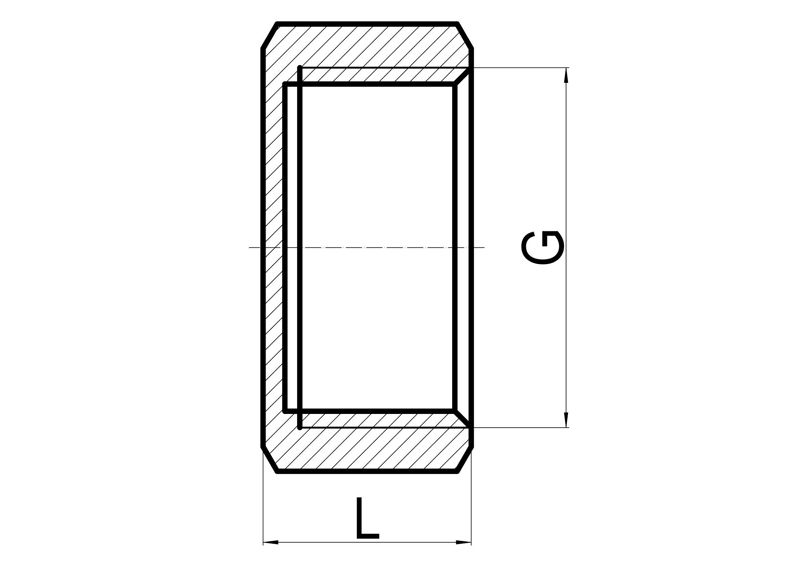

Торцевая крышка с резьбой, HS200-011
| РАЗМЕР | Резьба | Длина |
| 1/8'' | 1/8'' | 9.5 |
| 1/4'' | 1/4" | 10 |
| 3/8'' | 3/8" | 10.5 |
| 1/2'' | 1/2" | 12 |
| 3/4'' | 3/4" | 13.5 |
| 1'' | 1" | 15 |
| 1 1/4'' | 1 1/4" | 15 |
| 1 1/2'' | 1 1/2" | 16 |
| 2'' | 2" | 19 |

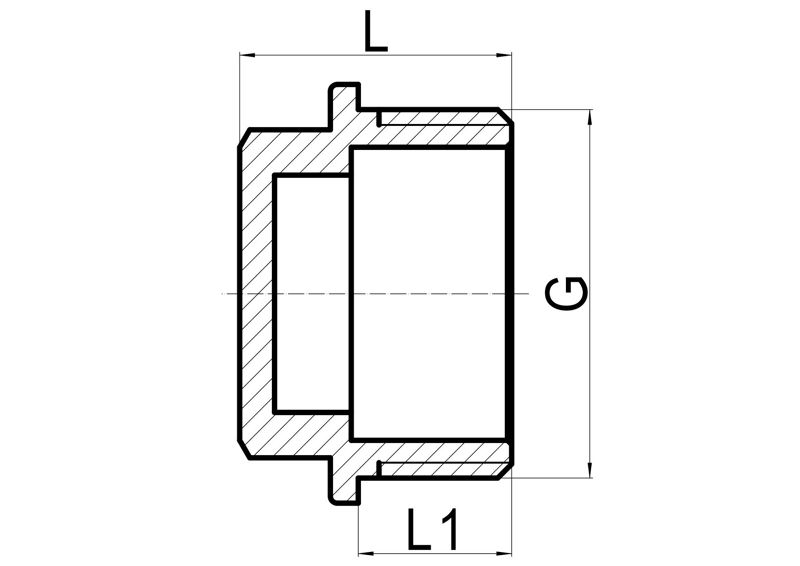

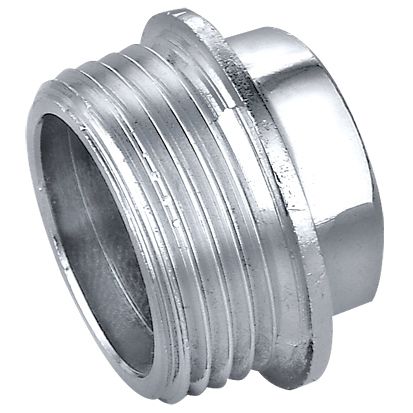

Фланцевая заглушка, HS200-012
| РАЗМЕР | Резьба | Длина | Длина1 |
| 1/8'' | 1/8" | 13.5 | 7 |
| 1/4'' | 1/4" | 13.5 | 7 |
| 3/8'' | 3/8" | 14 | 7 |
| 1/2'' | 1/2" | 17 | 9 |
| 3/4'' | 3/4" | 19.5 | 11 |
| 1'' | 1" | 21.5 | 11.5 |
| 1 1/4'' | 1 1/4" | 25.5 | 12.5 |
| 1 1/2'' | 1 1/2" | 28.5 | 13 |
| 2'' | 2" | 34.5 | 17 |
| 2 1/4'' | 2 1/4" | 36 | 18.5 |
| 2 1/2'' | 2 1/2" | 39.5 | 20 |
| 3'' | 3" | 46.5 | 24 |
| 4'' | 4" | 55.5 | 28 |

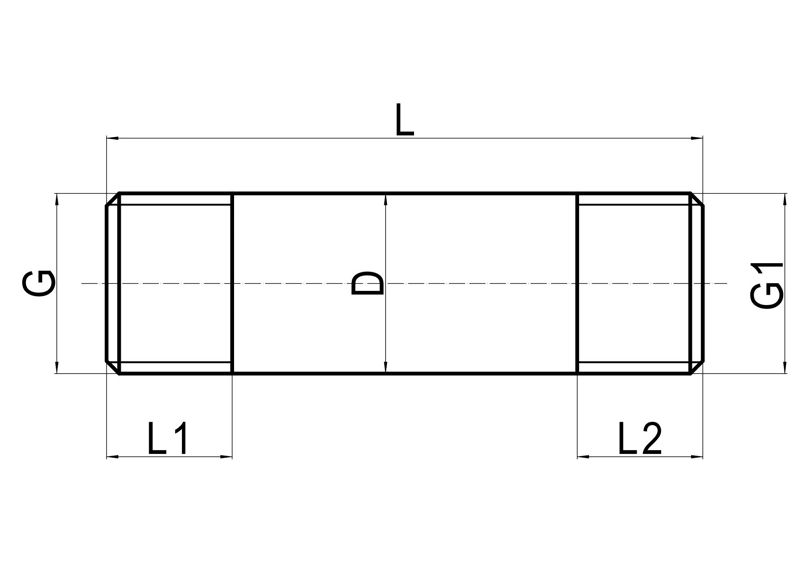

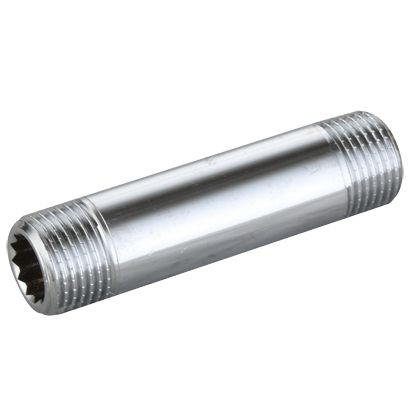

Резьбовой распорный ниппель, HS200-013
| РАЗМЕР | Диаметр | Резьба | Резьба1 | Длина | Длина1 |
| 1/2''×50 | 21.5 | 1/2" | 1/2" | 50 | 15 |
| 1/2''×60 | 21.5 | 1/2" | 1/2" | 60 | 15 |
| 1/2''×70 | 21.5 | 1/2" | 1/2" | 70 | 15 |
| 1/2''×80 | 21.5 | 1/2" | 1/2" | 80 | 15 |
| 1/2''×100 | 21.5 | 1/2" | 1/2" | 100 | 15 |
| 1/2''×150 | 21.5 | 1/2" | 1/2" | 150 | 15 |
| 1/2''×200 | 21.5 | 1/2" | 1/2" | 200 | 15 |
| 1/2''×250 | 21.5 | 1/2" | 1/2" | 250 | 15 |
| 1/2''×300 | 21.5 | 1/2" | 1/2" | 300 | 15 |
| 3/4''×50 | 27 | 3/4" | 3/4" | 50 | 16.5 |
| 3/4''×70 | 27 | 3/4" | 3/4" | 70 | 16.5 |
| 3/4''×80 | 27 | 3/4" | 3/4" | 80 | 16.5 |
| 3/4''×100 | 27 | 3/4" | 3/4" | 100 | 16.5 |
| 3/4''×150 | 27 | 3/4" | 3/4" | 150 | 16.5 |
| 3/4''×175 | 27 | 3/4" | 3/4" | 175 | 16.5 |
| 3/4''×200 | 27 | 3/4" | 3/4" | 200 | 16.5 |
| 3/4''×250 | 27 | 3/4" | 3/4" | 250 | 16.5 |
| 1''×50 | 34 | 1" | 1" | 50 | 19 |
| 1''×60 | 34 | 1" | 1" | 60 | 19 |
| 1''×70 | 34 | 1" | 1" | 70 | 19 |
| 1''×80 | 34 | 1" | 1" | 80 | 19 |
| 1''×100 | 34 | 1" | 1" | 100 | 19 |
| 1''×150 | 34 | 1" | 1" | 150 | 19 |
| 1''×200 | 34 | 1" | 1" | 200 | 19 |
| 1''×250 | 34 | 1" | 1" | 250 | 19 |
Отвод с резьбой из хромированной латуни

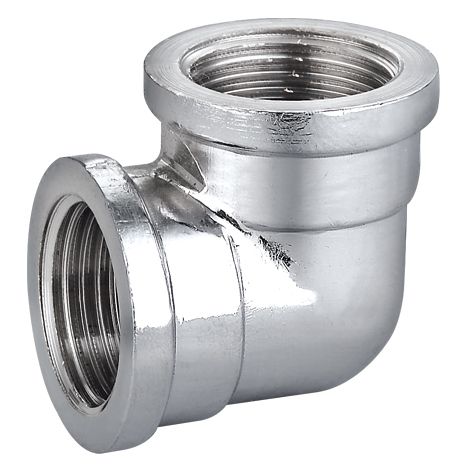

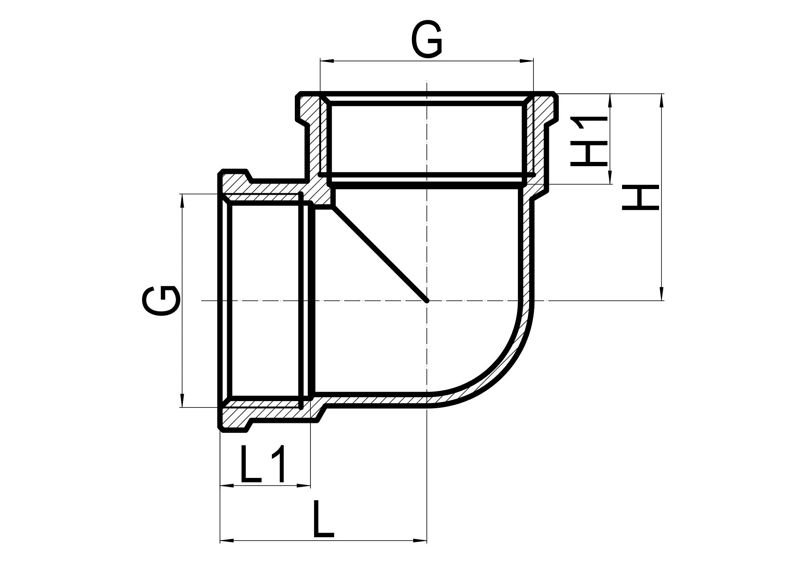

Внутренняя резьба равного отвода, HS200-005
| РАЗМЕР | Резьба | Длина | Длина1 | Высота | Высота1 |
| 1/4'' | 1/4'' | 15.5 | 8.5 | 15.5 | 8.5 |
| 3/8'' | 3/8" | 17.5 | 8.5 | 17.5 | 8.5 |
| 1/2'' | 1/2" | 22 | 11 | 22 | 11 |
| 3/4'' | 3/4" | 28 | 13.5 | 28 | 13.5 |
| 1'' | 1" | 32 | 14 | 32 | 14 |
| 1 1/4'' | 1 1/4" | 38 | 16 | 38 | 16 |
| 1 1/2'' | 1 1/2" | 40.5 | 16 | 40.5 | 16 |
| 2'' | 2" | 51 | 20 | 51 | 20 |
| 2 1/2'' | 2 1/2" | 67 | 25.5 | 67 | 25.5 |
| 3'' | 3" | 77 | 27 | 77 | 27 |
| 4'' | 4" | 95 | 36 | 95 | 36 |

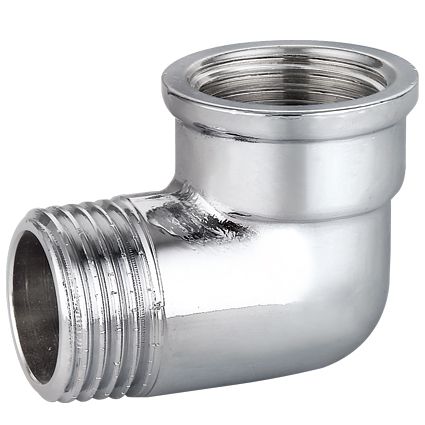

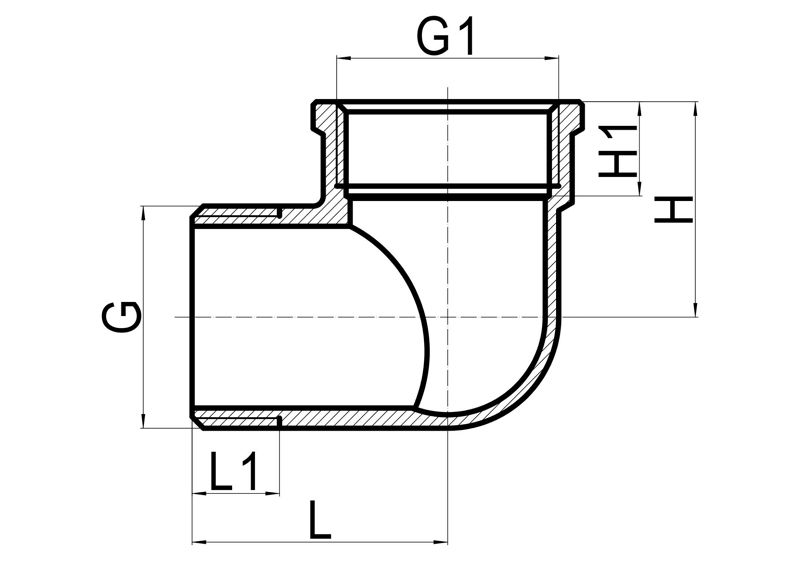

Наружная и внутренняя резьба равного отвода, HS200-006
| РАЗМЕР | Резьба | Резьба1 | Длина | Длина1 | Высота | Высота1 |
| 1/4'' | 1/4'' | 1/4'' | 20 | 7 | 15 | 8.5 |
| 3/8'' | 3/8" | 3/8" | 24.5 | 9 | 17 | 8.5 |
| 1/2'' | 1/2" | 1/2" | 29 | 10.5 | 22 | 11 |
| 3/4"×1/2" | 3/4" | 1/2" | 27 | 12 | 24 | 11 |
| 3/4'' | 3/4" | 3/4" | 33.5 | 12.5 | 28 | 13 |
| 1'' | 1" | 1" | 38 | 13 | 32 | 14 |
| 1 1/4'' | 1 1/4" | 1 1/4" | 45 | 15 | 37 | 15 |
| 1 1/2'' | 1 1/2" | 1 1/2" | 48 | 16 | 40 | 16 |
| 2'' | 2" | 2" | 62 | 19 | 52 | 20 |
| 2 1/2'' | 2 1/2" | 2 1/2" | 77 | 24 | 67 | 25.5 |
| 3'' | 3" | 3" | 86.5 | 27 | 77 | 27 |
Тройник с резьбой из хромированной латуни

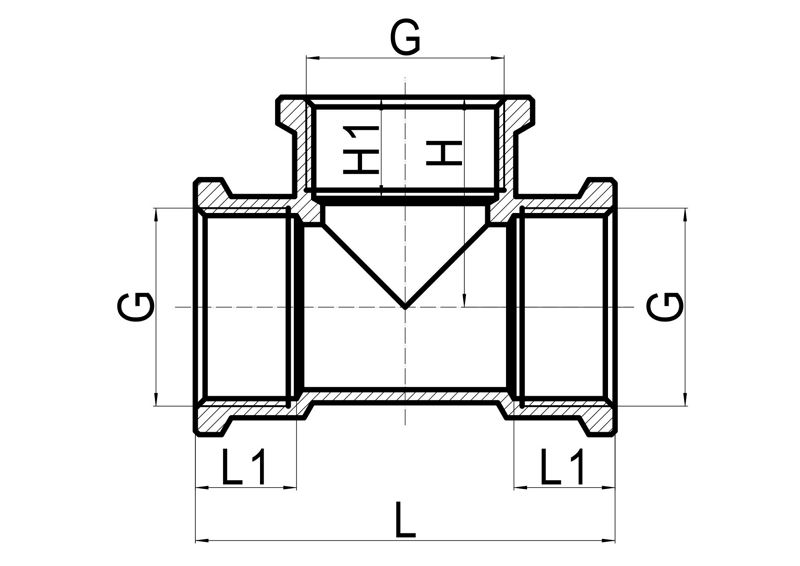

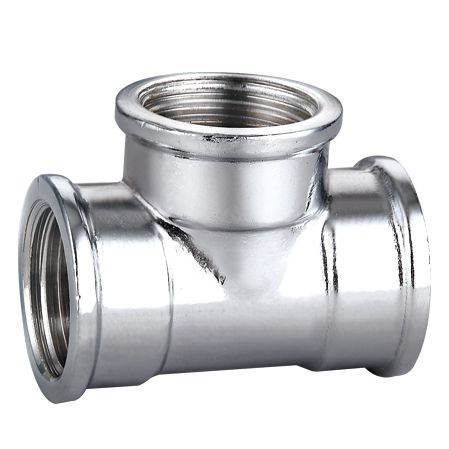

Равный тройник с резьбой (FFF), HS200-007
| РАЗМЕР | Резьба | Длина | Длина1 | Высота | Высота1 |
| 1/4'' | 1/4'' | 31 | 8.5 | 15.5 | 8.5 |
| 3/8'' | 3/8" | 35 | 8.5 | 17.5 | 8.5 |
| 1/2'' | 1/2" | 44 | 11 | 22 | 11 |
| 3/4'' | 3/4" | 56 | 13.5 | 28 | 13.5 |
| 1'' | 1" | 64 | 14 | 32 | 14 |
| 1 1/4'' | 1 1/4" | 76 | 16 | 38 | 16 |
| 1 1/2'' | 1 1/2" | 81 | 16 | 40.5 | 16 |
| 2'' | 2" | 102 | 20 | 51 | 20 |
| 2 1/2'' | 2 1/2" | 134 | 25.5 | 67 | 25.5 |
| 3'' | 3" | 154 | 27 | 77 | 27 |
| 4'' | 4" | 190 | 31 | 95 | 31 |

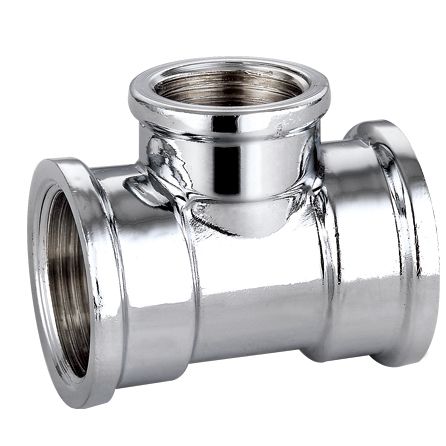

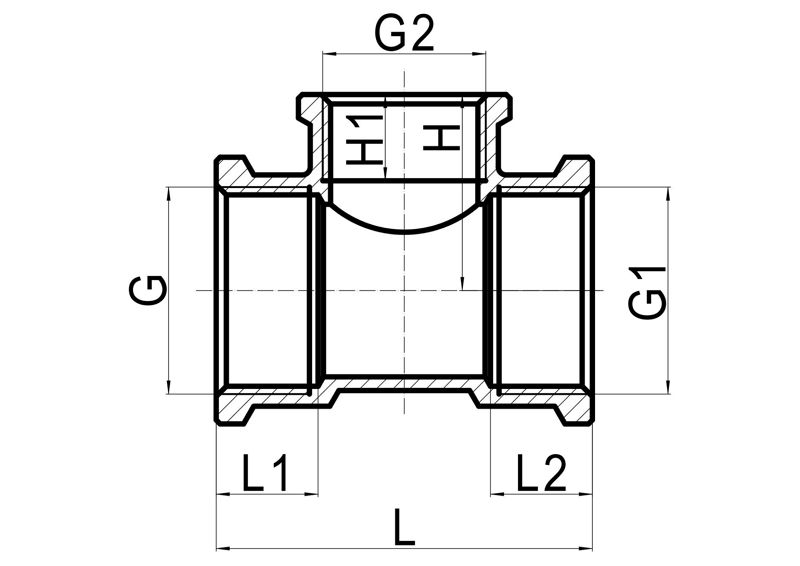

Резьбовой редукционный тройник (FFF), HS200-008
| РАЗМЕР | Резьба | Резьба1 | Резьба2 | Длина | Длина1 | Длина2 | Высота | Высота1 |
| 1/2''×3/8''×1/2'' | 1/2" | 1/2" | 3/8" | 42 | 11 | 11 | 20 | 8.5 |
| 3/4''×1/2''×3/4'' | 3/4" | 3/4" | 1/2" | 48 | 13 | 13 | 25 | 11 |
| 1''×1/2''×1'' | 1" | 1" | 1/2" | 52 | 14 | 14 | 27.5 | 11 |
| 1''×3/4''×1'' | 1" | 1" | 3/4" | 57 | 14 | 14 | 30 | 13.5 |
| 1 1/4''×1/2''×1 1/4'' | 1 1/4" | 1 1/4" | 1/2" | 56 | 16 | 16 | 32 | 11 |
| 1 1/4''×3/4''×1 1/4'' | 1 1/4" | 1 1/4" | 3/4" | 61 | 16 | 16 | 34 | 13.5 |
| 1 1/4''×1''×1 1/4'' | 1 1/4" | 1 1/4" | 1" | 66 | 16 | 16 | 34.5 | 14 |
| 1 1/2'' ×1/2''×1 1/2'' | 1.1/2" | 1.1/2" | 1/2" | 59 | 16 | 16 | 34.5 | 11 |
| 1 1/2'' ×3/4''×1 1/2'' | 1.1/2" | 1.1/2" | 3/4" | 63 | 16 | 16 | 37 | 13.5 |
| 1 1/2''×1''×1 1/2'' | 1.1/2" | 1.1/2" | 1" | 66 | 16 | 16 | 38 | 14 |
| 1 1/2''×1 1/4''×1 1/2'' | 1.1/2" | 1.1/2" | 1 1/4" | 74 | 16 | 16 | 41 | 15 |
| 2''×1/2''×2'' | 2" | 2" | 1/2" | 66 | 21 | 21 | 44 | 11 |
| 2''×3/4''×2'' | 2" | 2" | 3/4" | 69 | 21 | 21 | 44 | 13.5 |
| 2''×1''x2'' | 2" | 2" | 1" | 78 | 21 | 21 | 44 | 15 |
| 2''×1 1/4''×2'' | 2" | 2" | 1 1/4" | 85 | 21 | 21 | 46 | 16.5 |
| 2''×1 1/2''×2'' | 2" | 2" | 1 1/2" | 92 | 21 | 21 | 46 | 17 |
